Included Cabinet Assembly Components:
- (1) Right Side Panel
- (1) Left Side Panel
- (1) Bottom Panel
- (1) Top Panel
- (1) Back Panel
- (2) Shelves
- (1) Door
Additional Included Hardware:
- (2) Soft-Close Hinges
- (2) Door Bumpers
- (8) Shelf Support Clips
Required Tools for Assembly (Not Included):
- (1) Drill
- (1) Rubber Mallet
- (1) Screwdriver
- (9) 1¼” Flat Head Wood Screws
Wall Cabinet Assembly Instructions
Before beginning, inspect all parts to ensure nothing is missing or damaged.
Step 1:
Lay one side panel flat with the shelf holes facing upward.
Step 2:
Insert wooden dowels to attach the top and bottom panels to the side panel.
Make sure all finished surfaces are facing the correct direction.
Step 3:
Slide the back panel into place with the finished side facing inward.
Then, secure the second side panel to complete the cabinet frame.

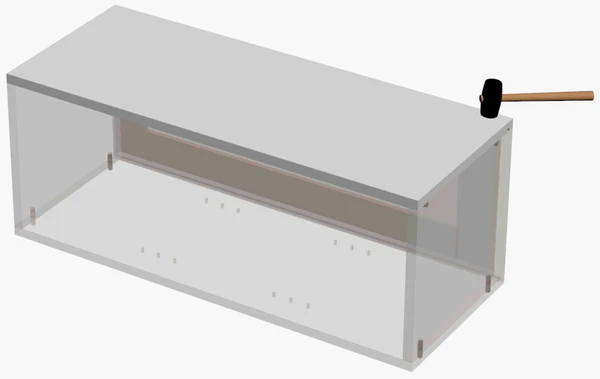

Use a rubber mallet to gently tap and secure all connected pieces, ensuring a snug fit without damaging the surfaces.
Step 4 (Recommended):
For additional support, drive 1¼” flat head wood screws into each corner where the side panels connect with the top and bottom panels.
Note: Screws are not included.
Once completed, carefully flip the cabinet to the opposite side and repeat Steps 3–4.
Step 5:
Lay the cabinet door flat with the hinge holes facing upward.
Use a rubber mallet to gently tap in and secure both door bumpers.
Use screws to install the soft-close hinges into the pre-drilled holes on the cabinet door.
Ensure the hinges are positioned so the door will swing in your desired direction once mounted to the cabinet frame.
Step 6:
Attach the door to the cabinet by securing the top hinge first.
Insert and tighten both the top and bottom screws into the cabinet frame.
Repeat the process for the bottom hinge.
Align the door by inserting and tightening the adjustable screw into the center hole of the top hinge.
Repeat this process for the bottom hinge to ensure the door is properly aligned.

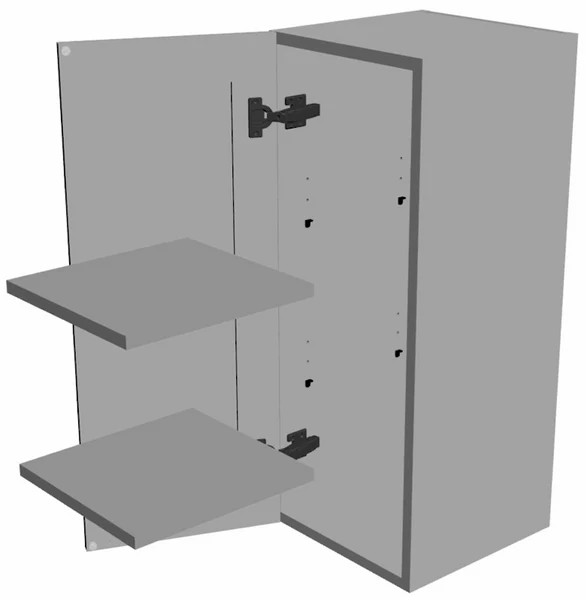

Step 7:
Install the shelves by inserting the shelf support clips into the holes at your desired height.
Then, slide each shelf into the cabinet, making sure it rests securely on top of the clips.
Your HRM Florida Wall Cabinet is Now Ready for Installation!
Perfect for your next project or home redesign.
